unicast route の変更により,flowspec validation は走るか

flowspec は forwarding に関するルールをルーター間で伝え合うプロトコルで,「他者から受け取ったルールを適用する前にvalidation しなさい」と仕様で決まっている.

では,validation するのはいつだろう?

  1. flowspec route を受け取ったとき
  2. flowspec route に関連するunicast route に変更があったとき

1 . は当然として,2 . のタイミングでvalidation が走るかどうかで振る舞いが大きく変わりそう.

RFC5575 によれば

A flow specification received from an external autonomous system will need to be validated against unicast routing before being accepted.

と書かれているものの,「いつvalidate するか」については細かく規定されていない.関連I-D にもない.

いつものように実装にまかされてるやつなので,Juniper vSRX, Cisco IOS-XRv で試してみた.

環境

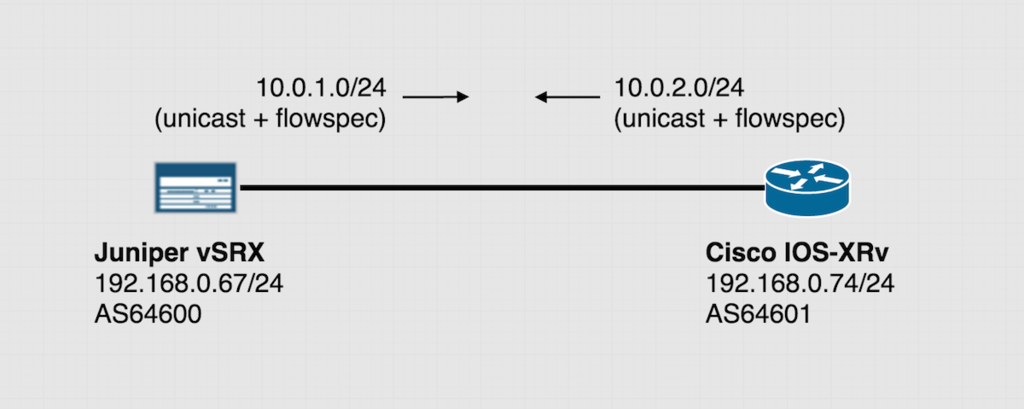

testing network

eBGP ピアを2 ルーター間で張り,

  1. unicast route を1つずつ広告する
  2. destination prefix が同じflowspec route も1つずつ広告する
  3. ピアを張ったまま,1 . をwithdraw して2 . の経路をvalidate し直すかを見る

結果

Juniper vSRX, Cisco IOS-XRv とも unicast route の変更時にもvalidation が走る

妥当な動きというか,直観的でよかった.そうでなければ「validation fail するはずなのに動いてる」「ebgp ピアがflap したらflowspec 動作が変わる」「soft clear したら動作が変わる」「flowspec route を止めて出し直したら動作が変わる」みたいになる.

以下,参考まで.

設定

Juniper vSRX

routing-options {
    static {
        route 10.0.1.0/24 discard;  # deactivate したり activate したりする
    }
    autonomous-system 64600;
    flow {
        route flow1 {
            match destination 10.0.1.0/24;
            then discard;
        }
    }
}
protocols {
    bgp {
        group ebgp {
            family inet {
                unicast;
                flow;
            }
            export redistribute-static;
            peer-as 64601;
            neighbor 192.168.0.74;
        }
    }
}
policy-options {
    policy-statement redistribute-static {
        from protocol static;
        then accept;
    }
}

Cisco IOS-XRv

class-map type traffic match-all flow1
 match destination-address ipv4 10.0.2.0 255.255.255.0  !
 end-class-map
!
policy-map type pbr drop1
 class type traffic flow1
  drop
 !
 class type traffic class-default
 !
 end-policy-map
!
route-policy permit-all
  pass
end-policy
!
router static
 address-family ipv4 unicast
  10.0.2.0/24 Null0   ! no したり入れたりする
 !
!
router bgp 64601
 address-family ipv4 unicast
  redistribute static
 !
 address-family ipv4 flowspec
 !
 neighbor-group ebgp
  remote-as 64600
  address-family ipv4 unicast
   route-policy permit-all in
   route-policy permit-all out
   soft-reconfiguration inbound always
  !
  address-family ipv4 flowspec
   route-policy permit-all in
   route-policy permit-all out
   soft-reconfiguration inbound always
  !
 !
 neighbor 192.168.0.67
  use neighbor-group ebgp
 !
!
flowspec
 address-family ipv4
  service-policy type pbr drop1
 !
!
end

unicast route があるとき

koji@vsrx> show route table inetflow.0 detail

inetflow.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
...
10.0.2/24,*/term:2 (1 entry, 1 announced)
        *BGP    Preference: 170/-101
                Next hop type: Fictitious
                Address: 0x8f3df04
                Next-hop reference count: 2
                State: <Active Ext>
                Local AS: 64600 Peer AS: 64601
                Age: 10:38
                Task: BGP_64601.192.168.0.74+179
                Announcement bits (1): 0-Flow
                AS path: 64601 I
                Communities: traffic-rate:64601:0
                Accepted

                # Accept されている

                Validation state: Accept, Originator: 192.168.0.74
                Via: 10.0.2.0/24, Active
                Localpref: 100
                Router ID: 172.16.0.3
RP/0/0/CPU0:ios#sh bgp ipv4 flowspec Dest:10.0.1.0/24
Thu May 22 10:52:24.962 UTC
BGP routing table entry for Dest:10.0.1.0/24/40
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                  6           6
Last Modified: May 22 10:46:16.486 for 00:06:08
Paths: (1 available, best #1)
  Not advertised to any peer
  Path #1: Received by speaker 0
  Not advertised to any peer
  64600, (received & used)
    0.0.0.0 from 192.168.0.67 (172.16.0.2)

      ! best になっている

      Origin IGP, localpref 100, valid, external, best, group-best
      Received Path ID 0, Local Path ID 1, version 6
      Extended community: FLOWSPEC Traffic-rate:0,0

unicast route がないとき

koji@vsrx> show route table inetflow.0 detail all
...
10.0.2/24,*/term:N/A (1 entry, 0 announced)
         BGP                 /-101
                Next hop type: Fictitious
                Address: 0x8f3df04
                Next-hop reference count: 2
                State: <Hidden Ext>
                Local AS: 64600 Peer AS: 64601
                Age: 17:41
                Task: BGP_64601.192.168.0.74+179
                AS path: 64601 I
                Communities: traffic-rate:64601:0

                # Reject されている

                Validation state: Reject, Originator: 192.168.0.74
                Via: 0.0.0.0/0, Active
                Localpref: 100
                Router ID: 172.16.0.3
RP/0/0/CPU0:ios#sh ip bgp ipv4 flowspec Dest:10.0.1.0/24
Thu May 22 10:58:36.526 UTC
BGP routing table entry for Dest:10.0.1.0/24/40
Versions:
  Process           bRIB/RIB  SendTblVer
  Speaker                  7           7
Last Modified: May 22 10:54:16.486 for 00:04:20
Paths: (1 available, no best path)
  Not advertised to any peer
  Path #1: Received by speaker 0
  Not advertised to any peer
  64600, (received & used)
    0.0.0.0 from 192.168.0.67 (172.16.0.2)

      ! invalid になっている

      Origin IGP, localpref 100, valid, external, invalid flowspec-path
      Received Path ID 0, Local Path ID 0, version 0
      Extended community: FLOWSPEC Traffic-rate:0,0
